MVE Vibrator Motor: An In - Depth Exploration

Introduction to MVE Vibrator Motors

MVE vibrator motors are a crucial component in various industrial applications. These motors are designed to generate vibration, which can be used for a wide range of purposes, such as material handling, screening, and compaction. They come in different types, including three - phase, single - phase, and DC motors, to meet diverse needs.

The MVE series of standard vibration motors have an adjustable exciting force ranging from 20 - 40000kg. This wide range allows them to be used in various industrial vibration equipment, ensuring that they can adapt to different working requirements.

Technical Features of MVE Vibrator Motors

Motor Structure

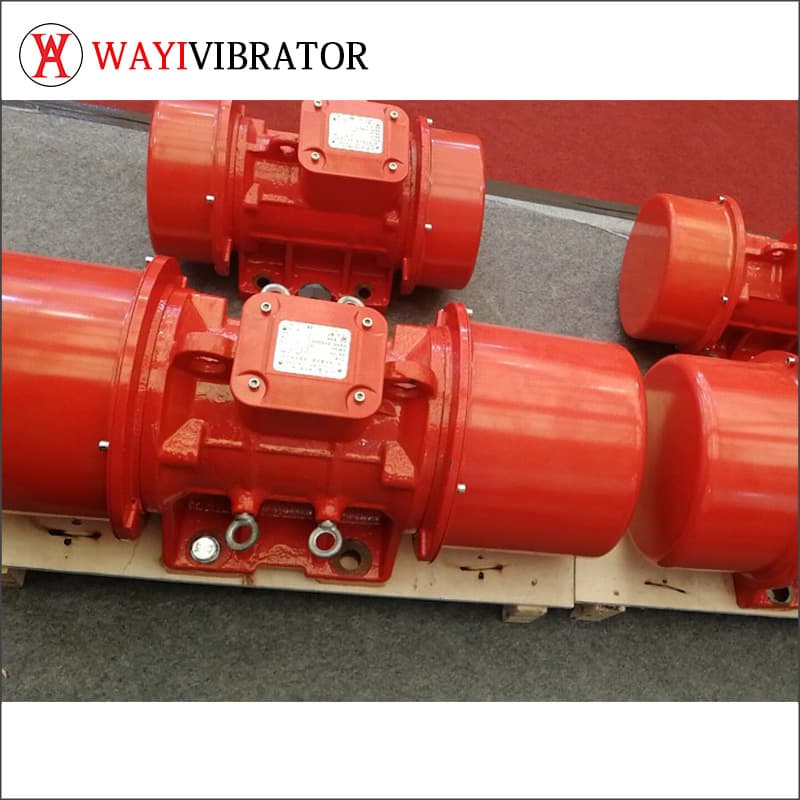

MVE horizontal vibration motors typically consist of a solid casting base designed through finite - element analysis. Inside the base, there is a motor, and at both ends of the shaft, there are eccentric blocks. The use of a casting base designed by finite - element analysis ensures the structural strength and stability of the motor, enabling it to withstand the impact and vibration during operation.

Electrical Characteristics

The voltage of MVE motors varies. They can be powered by DC 12/24V or AC 220 to 690V. The stator windings are vacuum - impregnated, and the insulation class is F. This high - quality insulation design improves the motor's electrical performance and reliability, reducing the risk of electrical failures.

Bearing Quality

MVE motors are equipped with high - quality bearings. These bearings can withstand high - speed rotation and heavy loads, ensuring smooth operation of the motor and reducing wear and tear, thereby extending the motor's service life.

Working Principles of MVE Vibrator Motors

When the MVE vibration motor is turned on, the high - speed rotation of the eccentric blocks at both ends of the shaft generates centrifugal force. The movement pattern generated by the motor depends on the number and installation method of the motors.

If only one vibration motor is installed on the vibration equipment, it will produce circular motion. For example, in some small - scale material flow - assisting devices, a single MVE motor can be used to create a circular vibration effect to promote material movement. On the other hand, if two vibration motors rotating in opposite directions are installed, it will generate linear motion. This linear motion is widely used in screening and conveying equipment, such as in the DZSF linear vibration screening machine, where MVE motors are used as the vibration source to achieve efficient material screening.

Applications of MVE Vibrator Motors

Industrial Screening and Sorting

MVE vibrator motors are widely used in industrial screening and sorting processes. In the mining industry, they are used in ZSG mining vibration screens to separate different sizes of ores. The vibration generated by the MVE motor helps the ores to move on the screen surface, improving the screening efficiency. In the food industry, MVE motors are also used in screening equipment to separate impurities from food products, ensuring product quality.

Material Handling and Conveying

In material handling systems, MVE motors play an important role. They can be installed on vibrating feeders, such as the ZD vibrating feeder. The vibration of the motor helps to transport materials from one place to another smoothly. In addition, in the vertical lifting and horizontal conveying of materials, MVE motors can provide the necessary power through different vibration forms, such as vertical lifting type and combination linear type.

Compaction and Densification

In the construction and foundry industries, MVE motors are used for compaction and densification. For example, in the production of concrete products, vibration motors can be used to compact the concrete, reducing the porosity and improving the strength of the products. In the foundry process, they can also be used to shake and compact the sand molds, ensuring the quality of the castings.

Safety and Certification of MVE Vibrator Motors

Many MVE vibrator motors have various safety certifications. For example, some motors have ATEX ExII3D and ETL, Class II, Division 2 certifications. These certifications indicate that the motors can be used in harsh environments where there may be combustible dust. The MVE - Exe series of motors have ATEX Exi2GD certification and international IECEx certification, which allows them to be used in environments with potential flammable dust or gas.

The MVE - Exd series of external explosion - proof vibration motors have a global IECEx certification and are suitable for use in environments where there may be combustible dust or gas, such as in oil solid - control equipment and dehydration equipment for hydraulic fracturing operations.

Market and Pricing of MVE Vibrator Motors

The market for MVE vibrator motors is diverse, with many manufacturers offering different models and specifications. The price of MVE motors varies depending on factors such as model, power, and exciting force. For example, the MVE21N - MICRO - M is priced at 10,000 yuan, while the MVE - 3800 type from Xinxiang Detai Machinery Equipment Co., Ltd. is priced at 3980 yuan per unit for single - unit purchase and 3950 yuan per unit for purchases of two or more units.

There are also some relatively inexpensive models in the market. For instance, some MVE series vibration motors and vibrators from Mianyang Liruipan Trading Co., Ltd. are priced at 700 yuan per unit, with free shipping and delivery arranged within 2 days after successful payment.

In conclusion, MVE vibrator motors are versatile and reliable industrial components. Their wide range of applications, advanced technical features, and strict safety certifications make them an important choice in many industries. As technology continues to develop, we can expect MVE motors to have more advanced features and broader application prospects in the future.

Maintenance and Troubleshooting of MVE Vibrator Motors

Regular Maintenance

Regular maintenance is crucial for the long - term stable operation of MVE vibrator motors. First, the exterior of the motor should be inspected regularly. Check for any signs of damage, such as cracks in the casting base or loose fasteners. The motor's bearings also need regular lubrication. Using high - quality lubricants can reduce friction and wear, ensuring smooth rotation of the bearings.

The electrical connections of the motor should be checked frequently. Loose or corroded connections can lead to poor electrical contact, which may cause the motor to malfunction or even be damaged. In addition, the motor's cooling system, if any, should be kept clean to ensure proper heat dissipation.

Troubleshooting

If the MVE vibrator motor fails to start, first check the power supply. Ensure that the voltage and current meet the motor's requirements. Check if the circuit breaker has tripped or if there are any blown fuses. If the power supply is normal, then check the motor's internal components, such as the stator windings and the rotor. A short - circuit or open - circuit in the windings can prevent the motor from starting.

If the motor vibrates abnormally during operation, it may be due to unbalanced eccentric blocks. Check the position and tightness of the eccentric blocks. If they are loose or misaligned, it can cause uneven centrifugal force, resulting in abnormal vibration. In addition, damaged bearings can also lead to abnormal vibration. If the bearings are found to be worn, they should be replaced promptly.

Comparison with Other Types of Vibrator Motors

Advantages over Traditional Motors

Compared with traditional motors, MVE vibrator motors have several advantages. Firstly, they combine the power source and the vibration source into one, which simplifies the design of the vibration equipment. This integration reduces the overall size and weight of the equipment, making it more compact and easier to install.

Secondly, MVE motors can provide a wide range of exciting forces, from 20 - 40000kg. This wide range allows them to be used in a variety of applications, from small - scale laboratory equipment to large - scale industrial production lines. In contrast, traditional motors may require additional vibration - generating devices to achieve the same vibration effect, which increases the complexity and cost of the equipment.

Differences from Other Vibration Motor Brands

There are many vibration motor brands in the market, and MVE has its own characteristics. MVE motors often have high - quality components, such as high - grade bearings and vacuum - impregnated stator windings, which ensure their reliability and long service life. In terms of safety, MVE motors have a variety of international certifications, which makes them suitable for use in harsh and dangerous environments.

Some other brands may focus more on cost - effectiveness, offering lower - priced products but with relatively lower performance and safety standards. However, MVE motors strike a balance between performance, safety, and cost, making them a popular choice for many industrial users.

Future Development Trends of MVE Vibrator Motors

Technological Innovation

In the future, MVE vibrator motors are likely to undergo continuous technological innovation. With the development of materials science, new materials may be used in the motor's construction, such as lighter and stronger alloys for the casting base, which can reduce the weight of the motor while improving its strength. In addition, more advanced control technologies may be applied to MVE motors, allowing for more precise control of the vibration frequency and amplitude.

Expansion of Application Fields

As industries continue to develop, the application fields of MVE vibrator motors are expected to expand. For example, in the emerging fields of 3D printing and micro - manufacturing, MVE motors may be used for material handling and vibration - assisted processing. In the environmental protection industry, they may be used in waste sorting and treatment equipment to improve the efficiency of waste separation.

Energy Efficiency Improvement

Energy efficiency is an important issue in the development of motors. Future MVE vibrator motors are likely to focus on improving energy efficiency. Through the use of more efficient motor designs and control strategies, the power consumption of the motors can be reduced, which not only saves energy but also reduces operating costs for users.

In summary, MVE vibrator motors have a bright future. Their continuous development and innovation will bring more benefits to various industries, promoting the progress of industrial production and technological development.
