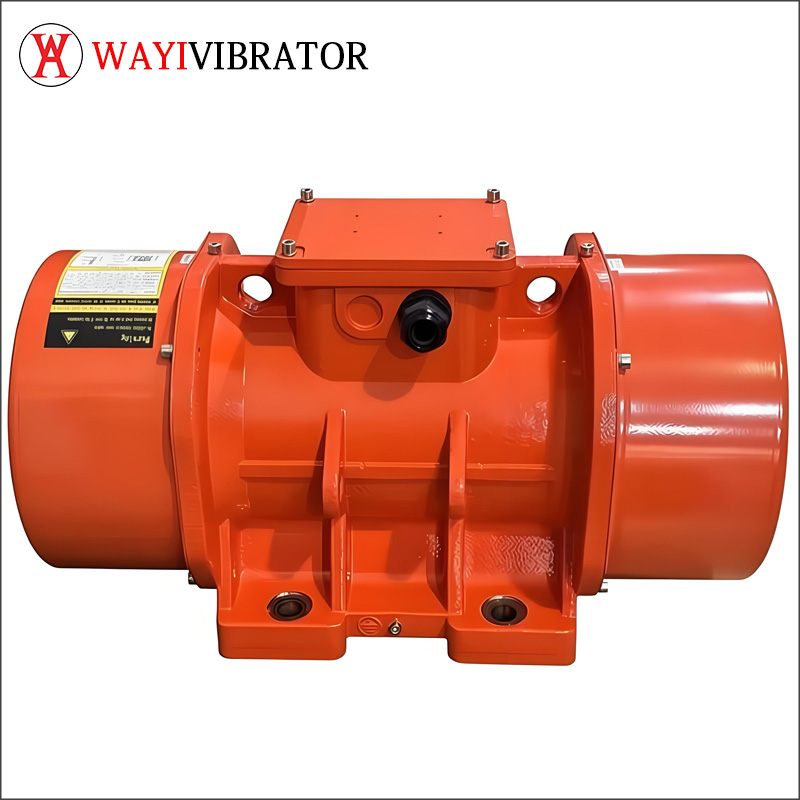

How to Do the Wire Connection of 3 Phase MVE Vibrator Motors

How to Do the Wire Connection of 3 Phase MVE Vibrator Motors？

The correct wire connection of 3-phase MVE vibrator motors is crucial to ensure their stable operation and avoid equipment damage or safety accidents. This article details the key links of MVE vibrator motor wiring, including pre-wiring preparation, standard wiring modes, specific operation steps, key precautions and common fault troubleshooting.

Pre-wiring preparation is the premise of safe and standardized wiring. Before starting any wiring work, the power supply must be strictly cut off to avoid live operation and prevent electric shock risks. It is necessary to check the motor nameplate to confirm the rated voltage and corresponding wiring type, and prepare all necessary tools and accessories. In addition, the winding insulation of the motor should be tested, and the insulation resistance must be above 0.5MΩ to ensure safe use.

Video Link: https://youtu.be/ejpwVr1dFPU

There are two standard wiring modes for 3-phase MVE vibrator motors, which can be switched through six terminals configured on the motor. Star connection is suitable for 220V low-power light-duty motors, while delta connection is the standard mode for 380V industrial motors, which can provide stable vibration and high torque. It should be noted that reliable grounding is required for both wiring modes to ensure operational safety.

The specific wiring steps should be carried out in accordance with the standard process: first, clean and inspect the terminal box to ensure that there is no damage to the internal terminals; then, crimp and connect the cables correctly, install matching copper strips according to the selected wiring mode, fasten the wires and seal the terminal box to ensure waterproof and dustproof performance. After completing the wiring, double-check all connections and conduct a test run; for equipment with multiple synchronous motors, it is necessary to ensure a consistent phase sequence to avoid operational abnormalities.

Key precautions should be strictly followed during and after wiring. Wiring work must be performed by professional electricians, and mandatory grounding is required. The external circuit should be equipped with overload and phase-loss protection devices to maintain stable voltage during operation. It is necessary to keep the waterproof seal of the terminal box intact, reserve a proper cable margin, and unify the phase sequence of multiple motors. Once a fault occurs during operation, the operation should be stopped immediately for inspection, and arbitrary modification of motor parameters is prohibited; regular inspection and maintenance, such as retightening terminal screws, should also be carried out.

Common faults in the wiring and operation of MVE vibrator motors can be judged and handled according to specific phenomena: motor startup failure is usually caused by power supply or wiring problems; weak or disordered vibration is mostly due to wrong wiring or inconsistent phase sequence; power tripping is generally caused by short circuits or cable leakage.

In summary, standard wiring operation and regular maintenance are the key to ensuring the safe and stable operation of 3-phase MVE vibrator motors, which can effectively extend the service life of the equipment and reduce the occurrence of faults.
