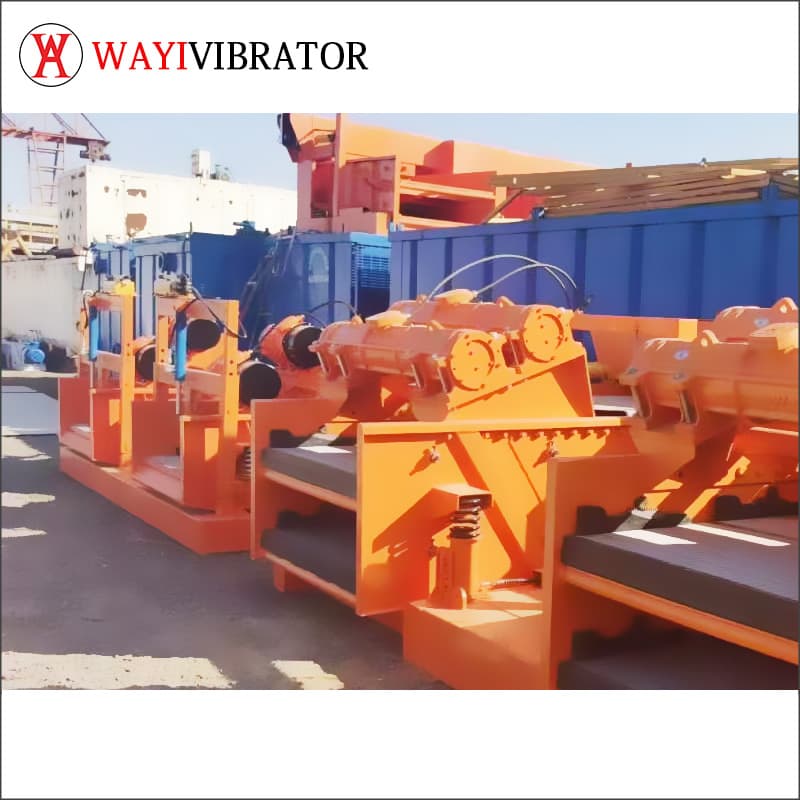

Customzied vibrator motors to replace MVE-SV long strip vibrators

The SV series vibratory motor operates on the same principle as a standard vibratory motor.

When two SV series vibratory motors are installed parallel to each other, they produce a linear motion trajectory. When a single SV series vibratory motor is installed, it generates a circular motion trajectory.

The SV series vibratory motor doesn't need to be installed on a beam because it functions as a beam itself.

SV series motors with 75A and 75D frame sizes are specially designed for retrofitting existing Druck vibratory equipment.

Due to its versatility, the SV series vibratory motor can be used in a wide range of applications, including quarrying & mining, solid - liquid separation (e.g. Druck screen), screening (e.g. Druck high - speed screen), oil & gas, and drilling fluid recovery systems (e.g. Druck Hyperpool solid control screen).

Ouliy SV series features:

SV series motors with 75A and 75D frame sizes have the same installation holes as Druck long motors.

They are equipped with first - class bearings.

The bearings have a long service life.

The eccentric blocks are easy to adjust.

They are maintenance - free.

Application benefits:

The vibratory force acts directly on the screen side wall, which significantly improves the screen's efficiency and mesh life.

The vibratory force of the Ouliy SV series can be adjusted via pre - drilled holes in the eccentric blocks.

The terminal box of the SV series is set for star high - voltage connection at the factory.

With minor adjustments inside the terminal box, the SV series can also be connected for low - voltage operation.

The SV series can be customized to different voltages to meet global usage requirements.
