Introduction to Long Strip Explosion-Proof Vibration Motors for the Oil and Gas Industry

Introduction to Long Strip Explosion-Proof Vibration Motors for the Oil and Gas Industry

Overview

Key Features

1. Explosion-Proof Design:
   • These motors are designed to prevent the ignition of explosive gases or dusts, making them suitable for use in potentially hazardous areas.
   • They are certified to international standards such as ATEX ExII2GD, ETL Class I, Division 1, and IECEx, which are essential for compliance with safety regulations in the oil and gas sector.
2. Vibration and Force Generation:
   • The motors generate vibration through the rotation of eccentric weights on the shaft. This vibration can be used for various purposes such as conveying, screening, dewatering, and liquid recovery.
   • The force generated by these motors can be adjusted to meet specific application requirements, with models available that can produce forces ranging from 800 to 5500 kg.
3. Robust Construction:

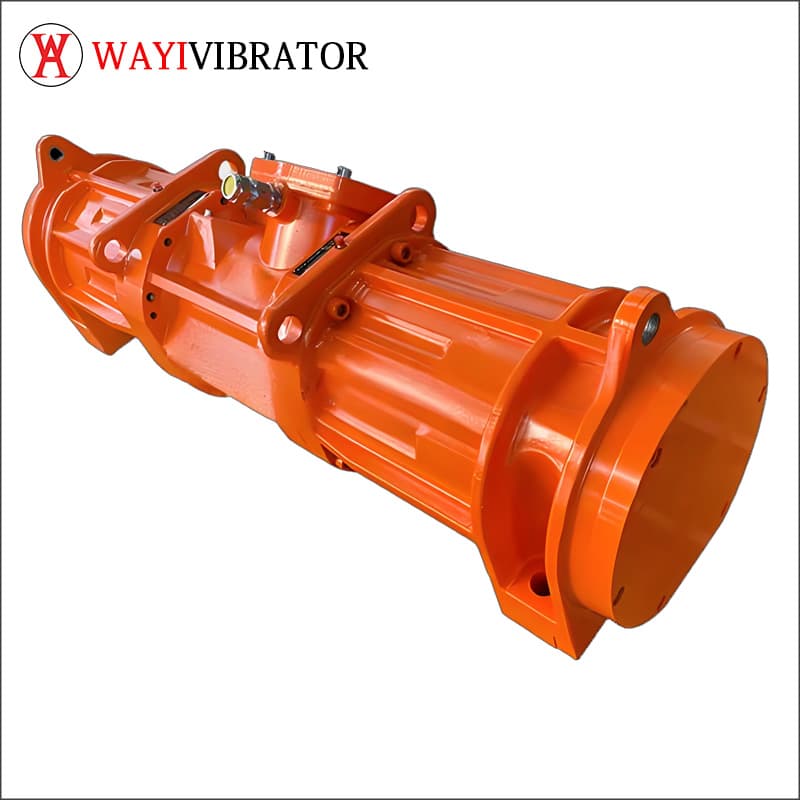

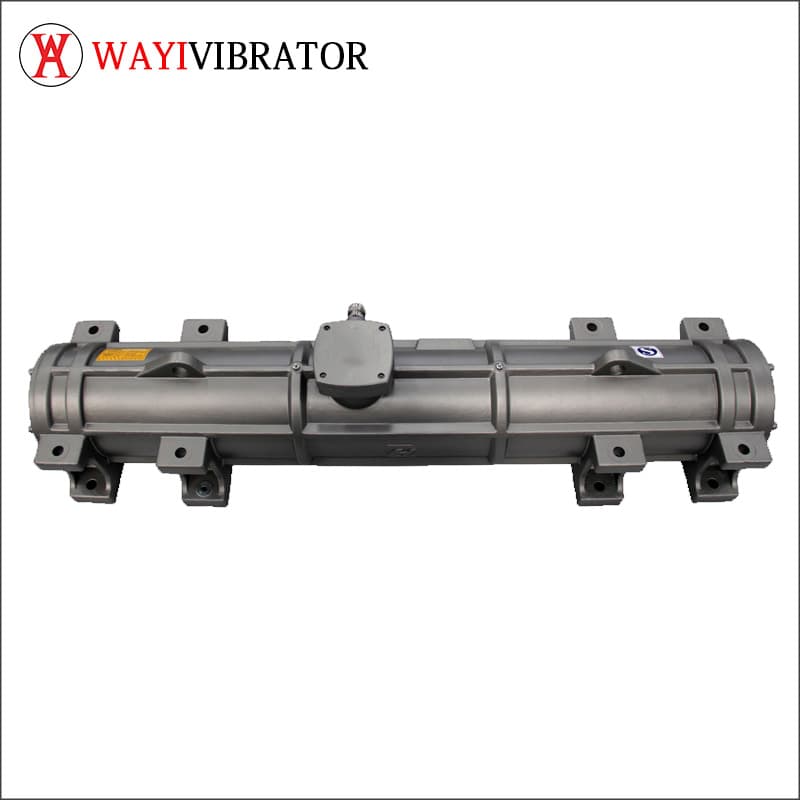

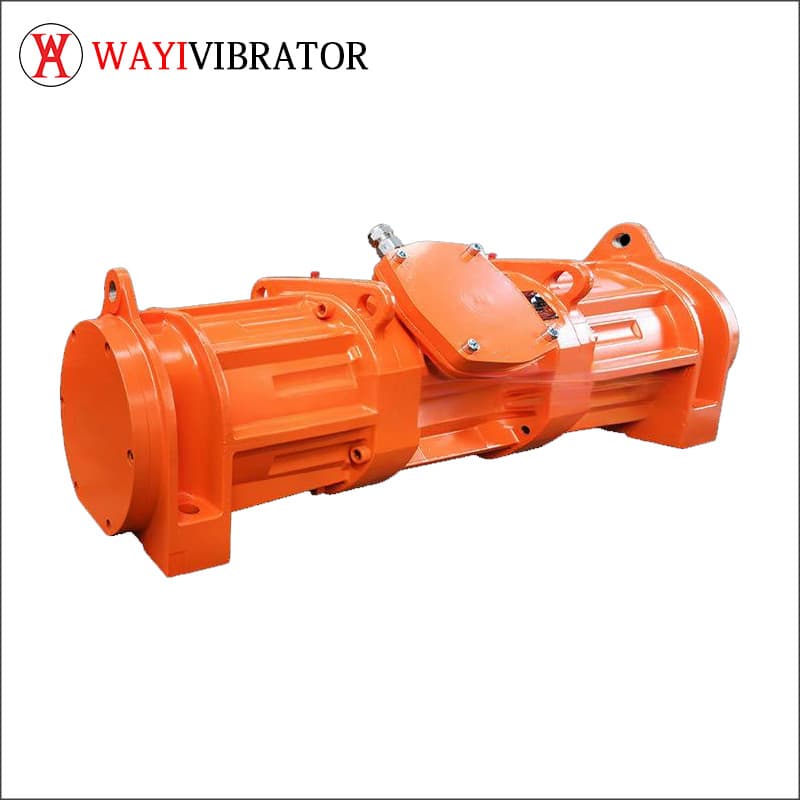

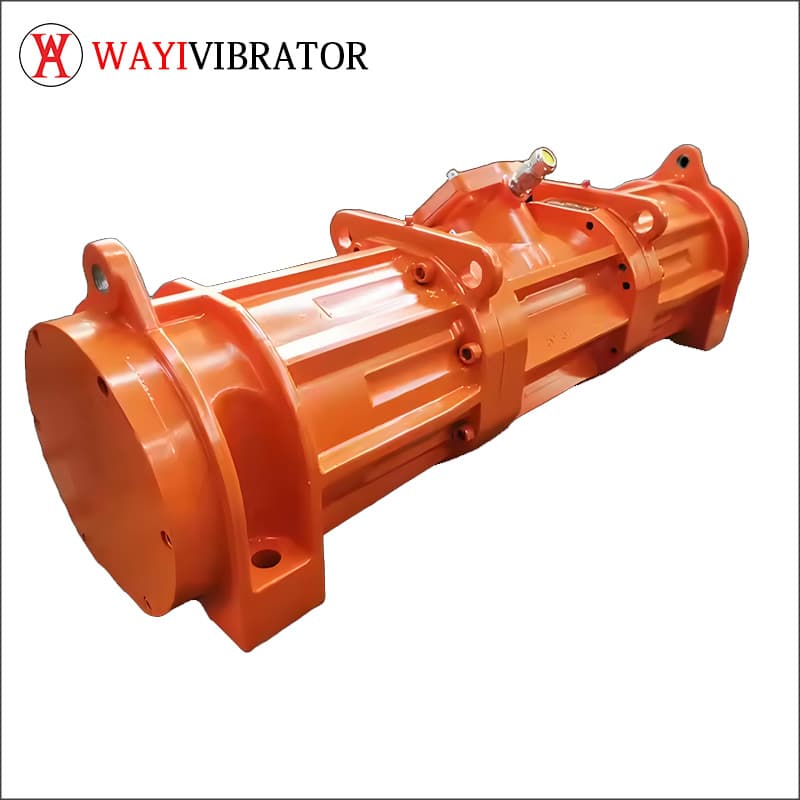

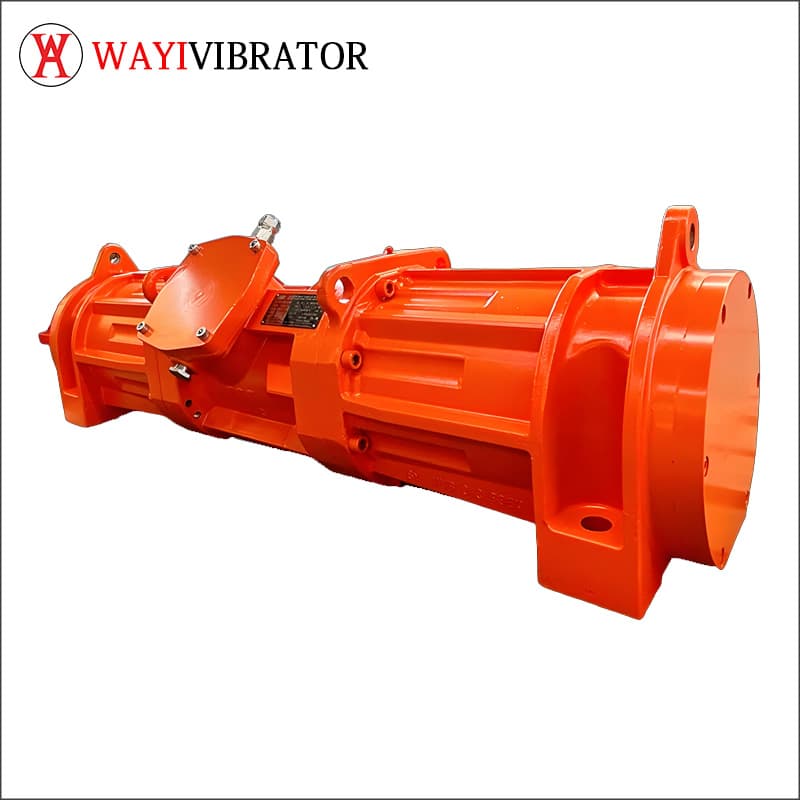

   • The motors feature a sturdy cast housing that has been designed using finite element analysis to ensure structural integrity and reliability.
   • Special design considerations and tight tolerances prevent internal explosions from affecting the external environment, enhancing safety.
4. Versatility in Application:

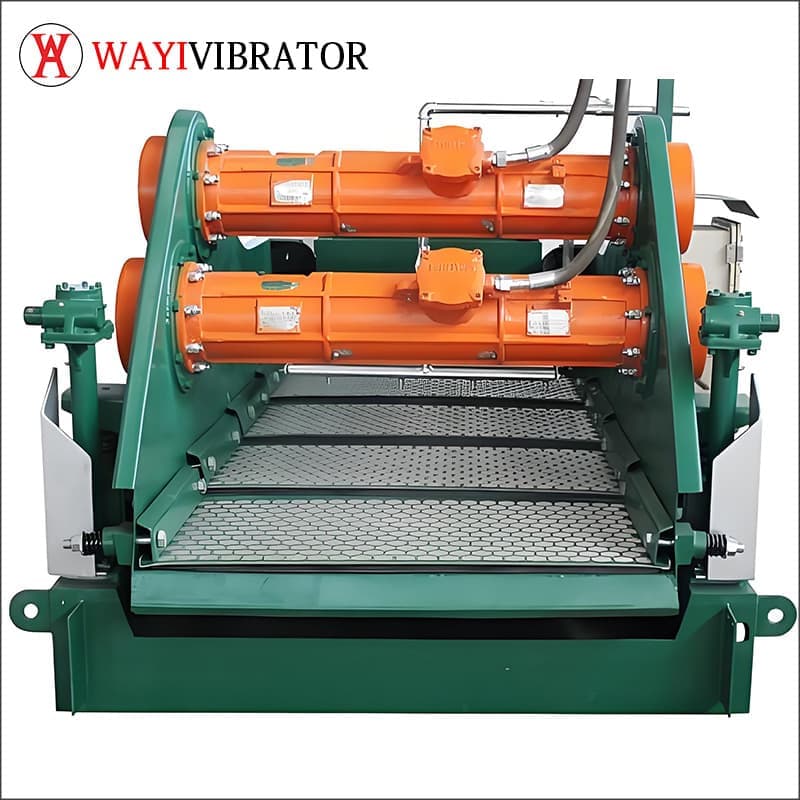

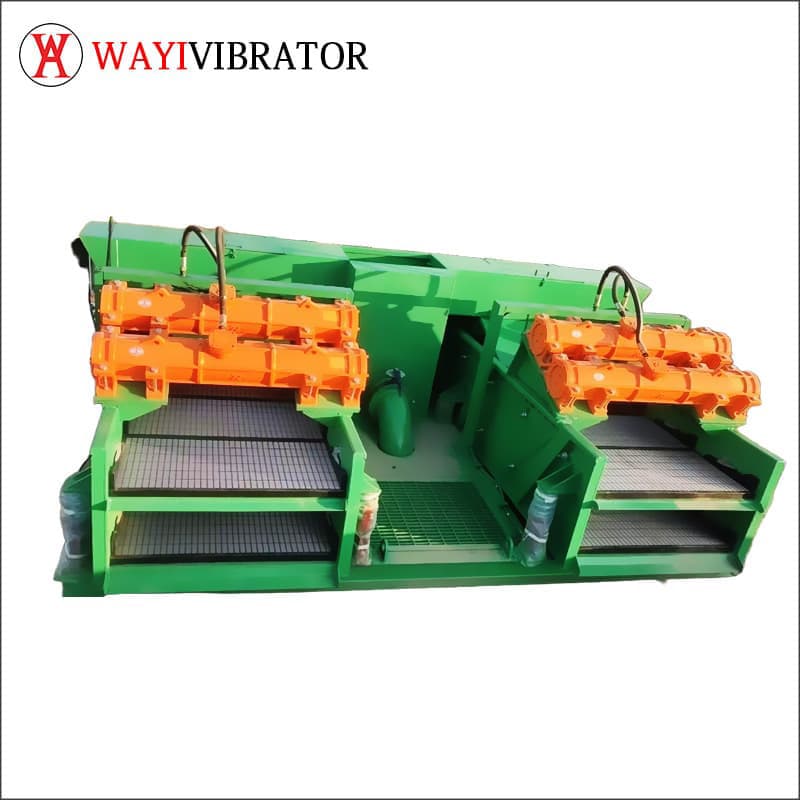

   • These motors can be used in a variety of equipment within the oil and gas industry, including shale shakers and dehydration equipment for hydraulic fracturing operations.

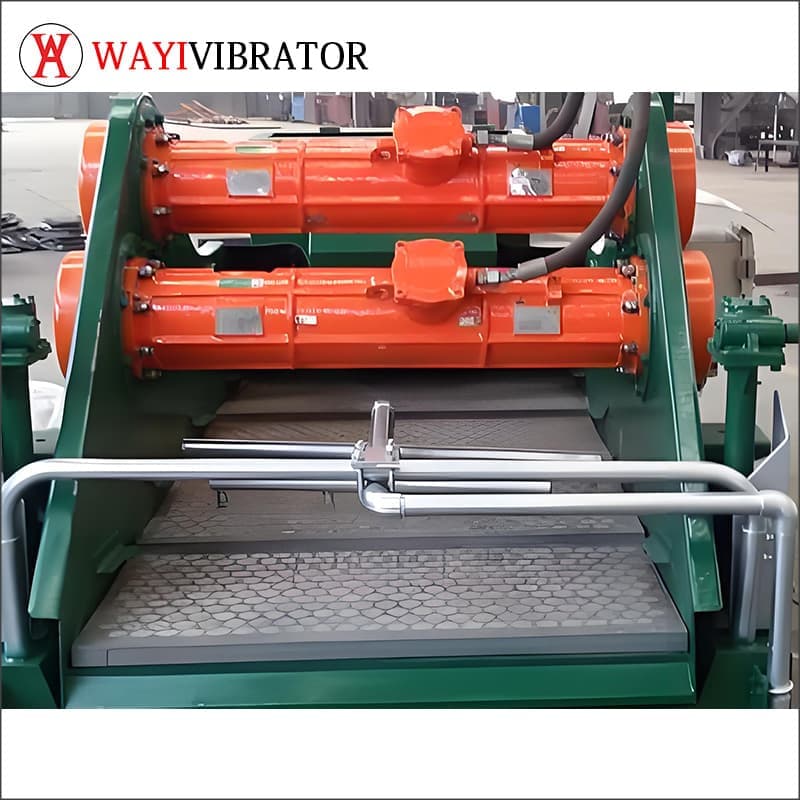

   • They are also suitable for applications requiring linear or circular motion, with the ability to install two motors in opposite rotation to achieve the desired vibration pattern.

Technical Specifications

• Frame Sizes: Available in various frame sizes to accommodate different power and vibration requirements.
• Pole Numbers: Options include 2, 4, 6, or 8 poles to match the specific needs of the equipment.
• Mounting Options: Designed for flexible mounting, including IM B3 and IM B35 configurations, to fit into existing systems.

Safety and Compliance

• ATEX Certification: Certified under ATEX ExII2GD for use in Zone 1 and Zone 21 hazardous areas.
• ETL Certification: Compliant with ETL Class I, Division 1, and Class II, Division 1 standards.
• IECEx Certification: Global certification ensuring compliance with international explosion-proof standards.

Conclusion
