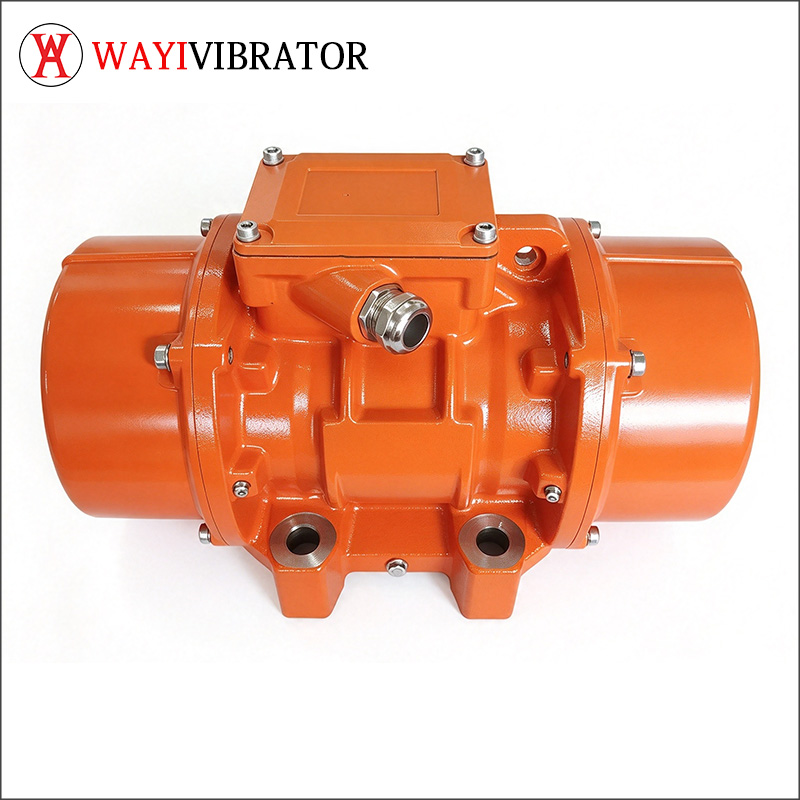

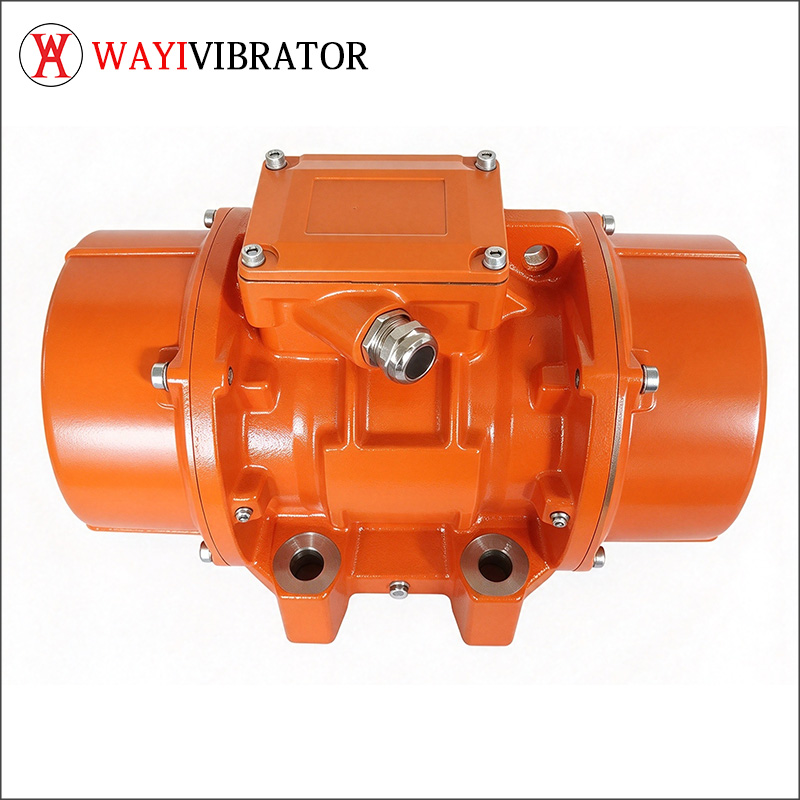

Replacement MVS1 3-1310-S90 Vibrator Motor | Shanghai WAYIVIBRATOR, 1.3kW, 3000RPM, 1270kg Exciting Force, IP66-7, F Class Insulation

Our custom vibration motor is engineered as a perfect substitute for the Italian MVS1 3-1310-S90 vibrator motor.All critical specifications and footprint are fully matched, which means no modification is required for installation on your existing mining equipment. It supports non-stop continuous running under heavy-duty mining working conditions, delivering stable and reliable vibration performance.

This is a three-phase industrial vibrator motor, built with robust construction and strict quality control.

✅ Drop-in replacement for MVS1 3-1310-S90

✅ Same mounting size, exciting force, power as original unit

✅ Continuous operation for mining machinery

✅ High protection grade IP66-7 against dust and water ingress

✅ Class F insulation for enhanced thermal resistance

Technical Specifications

• Brand: WAYIVIBRATOR

• Replace Model: MVS1 3-1310-S90

• Phase: 3 Phase

• Voltage: 220‑240 / 380‑415V

• Rated Current: 2.1A

• Input Power: 1.3 kW

• Speed: 3000 RPM

• Frequency: 50 Hz

• Power Factor (cosφ): 0.80

• Exciting Force: 1270 kg

• Protection Class: IP66-7

• Insulation Class: F

Application Scenarios

Mainly used for mining machinery, vibrating screens, feeders, vibration tables and other industrial vibration equipment where MVS1 3-1310-S90 was originally equipped.

Our Advantage

Compared with the original imported MVS1 3-1310-S90 vibration motor, WAYIVIBRATOR replacement version offers shorter lead time, competitive pricing and consistent performance, without sacrificing running stability for continuous mining service.We also support customized vibration motors according to customers’ special working condition requirements.

FAQ :

Q1: Can this WAYIVIBRATOR motor directly replace MVS1 3-1310-S90?A1: Yes, same mounting dimension, exciting force, power and parameters, plug-and-play replacement, no mechanical modification needed.

Q2: Is it suitable for continuous 24h running on mining machines?A2: Yes, designed for continuous heavy-duty operation in mining conditions.

Q3: What is the protection level and insulation class?A3: IP66-7 protection, F class insulation.

Note: If you need drawing, installation sketch or test report, please send us an inquiry.
