The ZW-1 concrete vibration motor is an essential tool for the vibration and compaction of concrete in modern construction engineering. It is mainly used in various types of vibration machinery to carry out vibration and compaction work on various shapes of concrete workpieces, such as vibration feeders, vibration conveyors, vibration dryers, vibration ore feeders, vibration sand shakers, vibration screening machines, etc. WAYIVIBRATOR can offer you ZW-1 and all other ZW series vibrator motors.

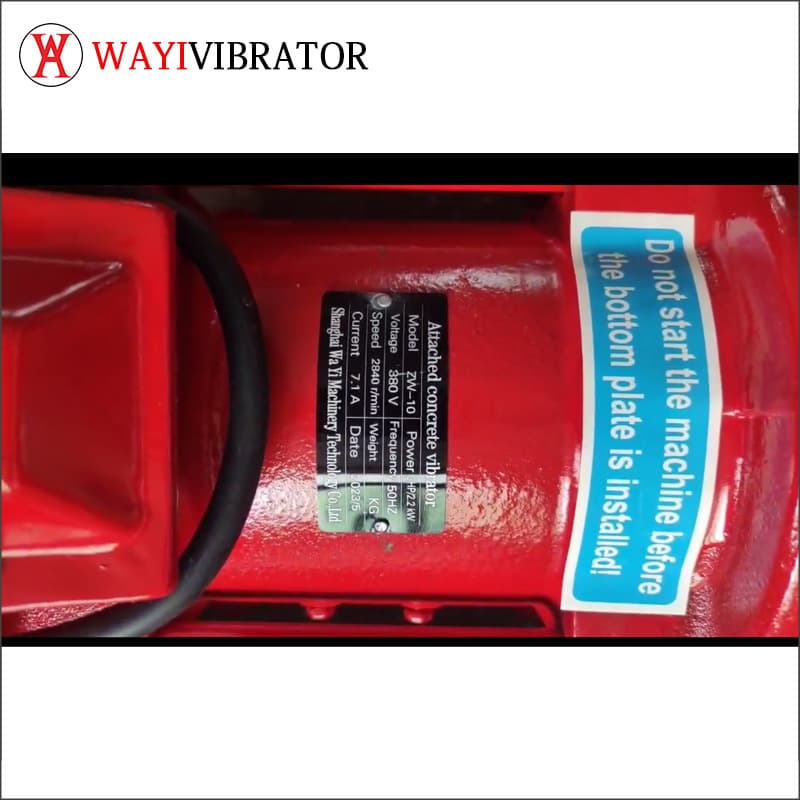

ZW-1 vibrating motor for concrete table

When pouring concrete components mixed with concrete mixer, it is necessary to eliminate air bubbles and tamp to make the concrete compact, eliminate the honeycomb and pitted surface of concrete, so as to improve its strength and ensure the quality of concrete components. The concrete compaction is a kind of machine used to tamp concrete mechanically.

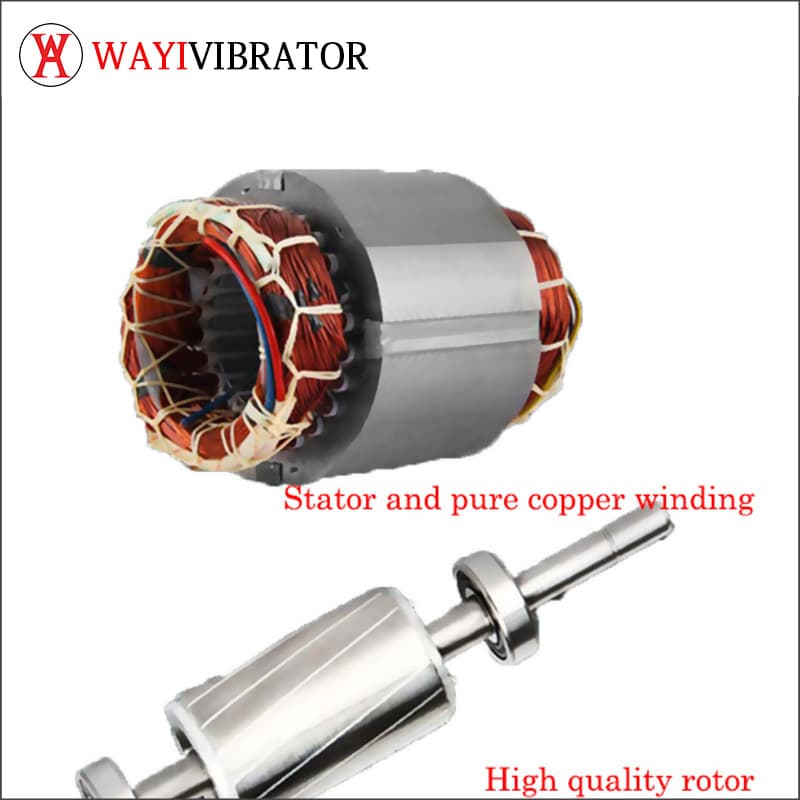

ZW-1 vibrating motor for concrete table

ZW series vibrator motors are widely used on the concrete compactor, because its cost is very low, and the price is very cheap. ZW series vibration motor is also widely used in concrete vibration table, which can be used to vibrate concrete preforms. The prefabricated products installed in the formwork are placed on the platform connected with the vibrator, and the vibration wave generated by the vibrator is transmitted to the concrete prefabricated products through the platform and the template.

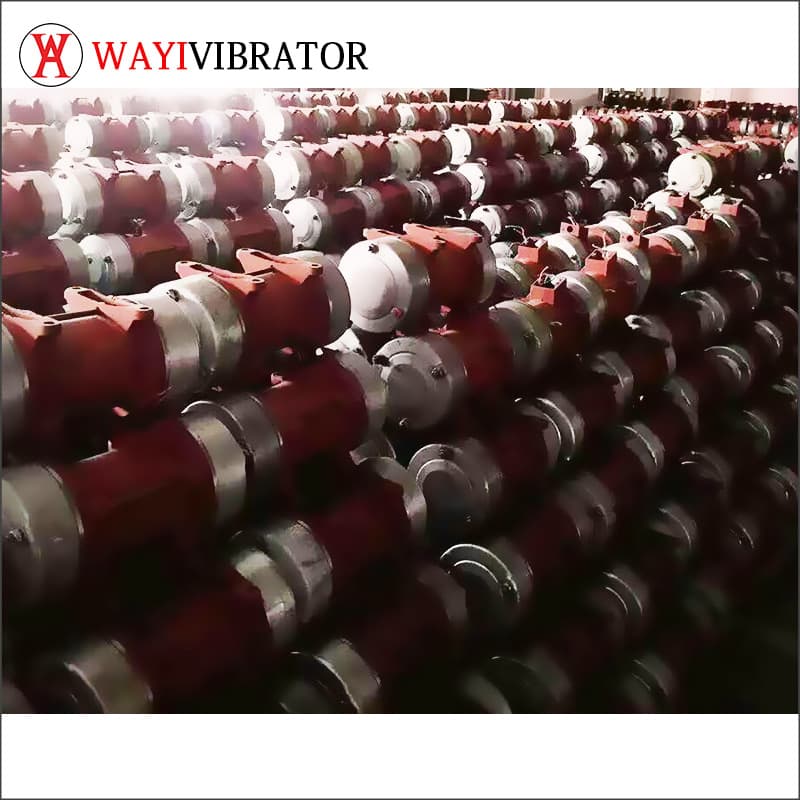

ZW-1 vibrating motor for concrete table

In order to save cost, many brick making machines will also use ZW series vibration motor. The high temperature resistance performance requirements of concrete equipment for vibration motors are not too high. ZW series can basically meet their requirements. However, due to the low quality of materials used by ZW, most of them can not be used for a long time. Generally, the service life is up to one year, which is far from the service life of universal vibration motors which is over 4 years.

Model NO	Vibration Force	Rated Power	Voltage	Current	Rolling Speed	Mounting Size	Dimensions	Weight	Size of Base Plate	Weight of Base Plate
ZW-1	100KG(1KN)	0.25KW	Single-phase 220V	1.4A	2850RPM	100*80mm	200120120mm	4.0kg
ZW-1	100KG(1KN)	0.25KW	Three-Phase 380V	0.83A	2850RPM	100*80mm	200120120mm	4.1kg
ZW-2	200KG(3KN)	0.37KW	Single-phase 220V	2.1A	2850RPM	120*110mm	225150165mm	5.4kg
ZW-2	200KG(3KN)	0.37KW	Three-Phase 380V	1.2A	2850RPM	120*110mm	225150165mm	5.5kg
ZW-3	300KG(3KN)	0.55KW	Single-phase 220V	3.1A	2850RPM	120*110mm	225150165mm	7kg
ZW-3	300KG(3KN)	0.55KW	Three-Phase 380V	1.8A	2850RPM	120*110mm	225150165mm	7.3kg
ZW-3.5	350KG(3.5KN)	0.75KW	Single-phase 220V	4.2A	2850RPM	140*110mm	280165180mm	10.5kg	360*285mm	1.8kg
ZW-3.5	350KG(3.5KN)	0.75KW	Three-Phase 380V	2.4A	2850RPM	140*110mm	280165180mm	10.7kg	360*285mm	1.8kg
ZW-5	500KG(5KN)	1.1KW	Single-phase 220V	6.25A	2850RPM	165*140mm	340195180mm	17.5kg	420*330mm	4.5kg
ZW-5	500KG(5KN)	1.1KW	Three-Phase 380V	3.6A	2850RPM	165*140mm	340195180mm	18kg	420*330mm	4.5kg
ZW-7	700KG(7KN)	1.5KW	Single-phase 220V	8.5A	2850RPM	165*140mm	340195180mm	18.5kg	420*330mm	6.3kg
ZW-7	700KG(7KN)	1.5KW	Three-Phase 380V	5.0A	2850RPM	165*140mm	340195180mm	18.8kg	420*330mm	6.3kg
ZW-10	1000kg(10KN)	2.2KW	Single-phase 220V	12.5A	2850RPM	185*160mm	380220200mm	24.3kg	600*420mm	7.5kg
ZW-10	1000kg(10KN)	2.2KW	Three-Phase 380V	7.2A	2850RPM	185*160mm	380220200mm	24.7kg	600*420mm	7.5kg
