YZO-5-4 vibrator from WAYIVIBRATOR with factory price and high quality
$300.00
INQUIRY EMAIL
QR code
DetailSpecifications
The YZO-5-4 vibration motor of WAYIVIBRATOR is a type of three-phase asynchronous motor designed for industrial applications, providing efficient and reliable vibration force. Here is a detailed introduction to the YZO-5-4 vibration motor from WAYIVIBRATOR:
Product Description
The YZO series vibration motor integrates the power source and vibration source into one unit. It is widely used in various industries, such as mining, coal, electricity, chemicals, food processing, metallurgy, and more. This series is known for its small size, high efficiency, and easy maintenance.
Key Features
- High Efficiency: The YZO series uses vibration power, which is energy-efficient and low in operating cost.
- Reliable Structure: Made from high-quality materials, these motors have a robust structure and long service life.
- Adjustable Excitation Force: The vibration force can be adjusted according to specific application needs.
- Fully Enclosed Design: Suitable for high-dust environments, ensuring durability and reliability.

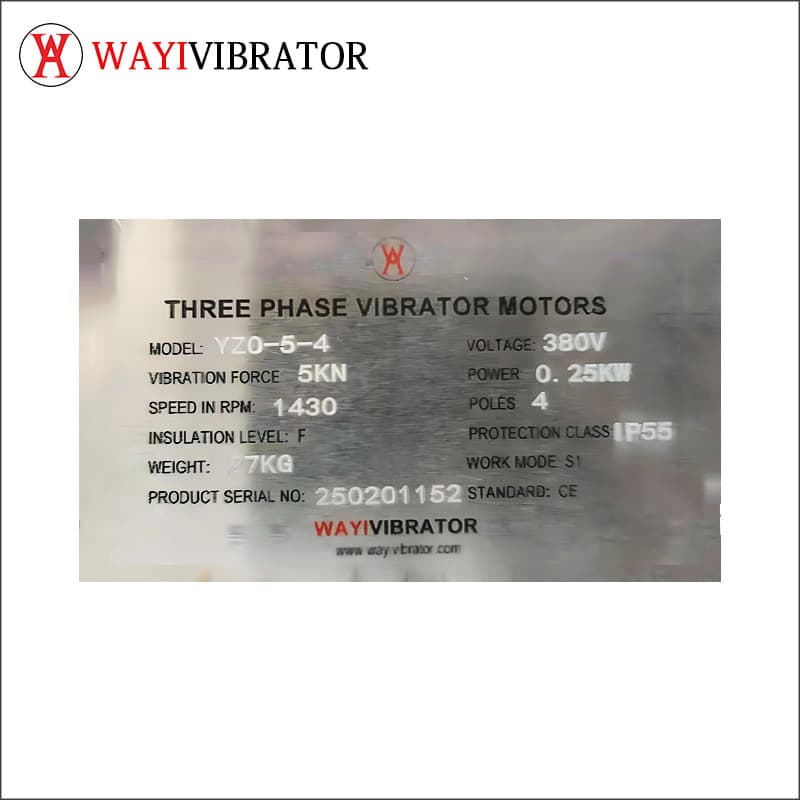

Technical Specifications of YZO-5-4 vibration motor:
| Model: | YZO-5-4 | Poles: | 4 |
| Brand: | WAYIVIBRATOR | Speed: | 1500RPM |
| Power: | 0.25kW | Color: | Orange/Red/Blue/Grey/Customized |
| Phase: | Three | Weight: | 7kg |
| Voltage: | 380V,50HZ(customized) | Winding: | 100% Copper Wire |
| Ambient: | <40℃ | Package: | Wooden case for sea |
| Altitude: | ≤1000meters | Standard: | CE,CCC |
| Warranty: | 18 Months | Vibration Force: | 5KN |
| Mounting Size: | 125*125*3800(mm) | Protect Feature: | Totally Enclosed |
| Place of Origin: | Shanghai, China | Frame Materials: | Cast Iron |
| Supply Capacity: | 1000 units/month | Protection Class: | IP54,IP55,IP56,IP65, |
| High-Temperature Resistance: | 120 Centigrade | lnsulation grade: | F |
Model Description
- YZO: Indicates it is a vibration motor of YZO series.
- 5: Represents the maximum excitation force of 5 kN.
- 4: Indicates the motor has 4 poles.
Applications
The YZO-5-4 vibration motor is ideal for applications such as:
- Vibrating screens
- Conveyors
- Feeders
- Sieves
It is particularly effective in moving, sorting, or separating materials.
Operating Conditions
- Ambient Temperature: Up to 40°C.
- Altitude: Up to 1000 meters.
- Power Frequency: 50 Hz.
- Voltage: 380V.
If you need further information or assistance, please feel free to contact us.
Model
：
YZO-5-4
Poles
：
4
Series
：
YZO
Brand
：
WAYI
Power
：
0.25kw, 0.33hp or 1/3hp
Speed
：
1500RPM
Voltage
：
220V/380V
Weight
：
7kg
Material
：
Casting Iron
Vibrator Force
：
5KN
