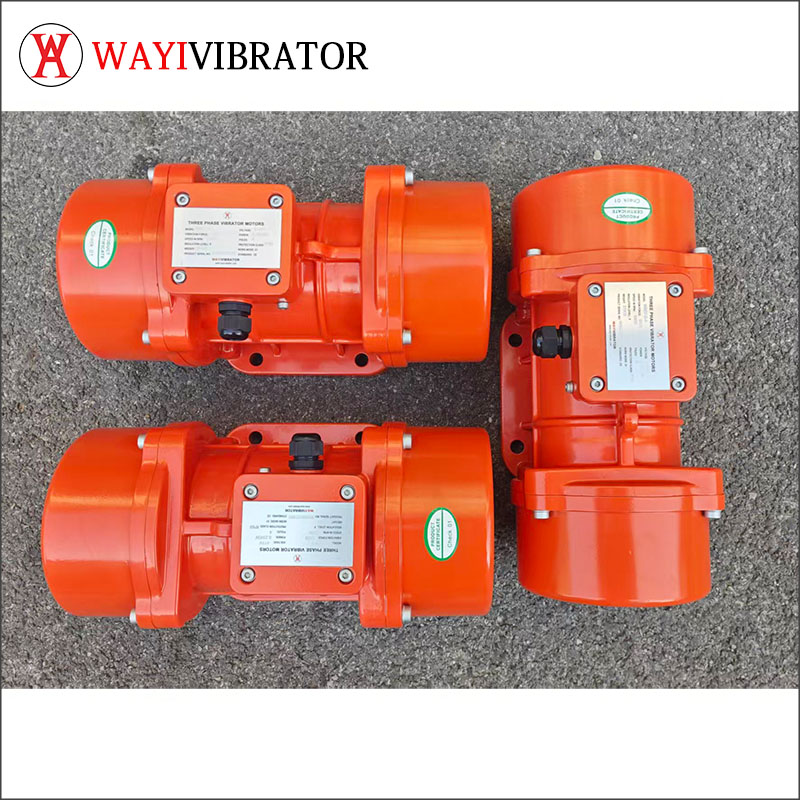

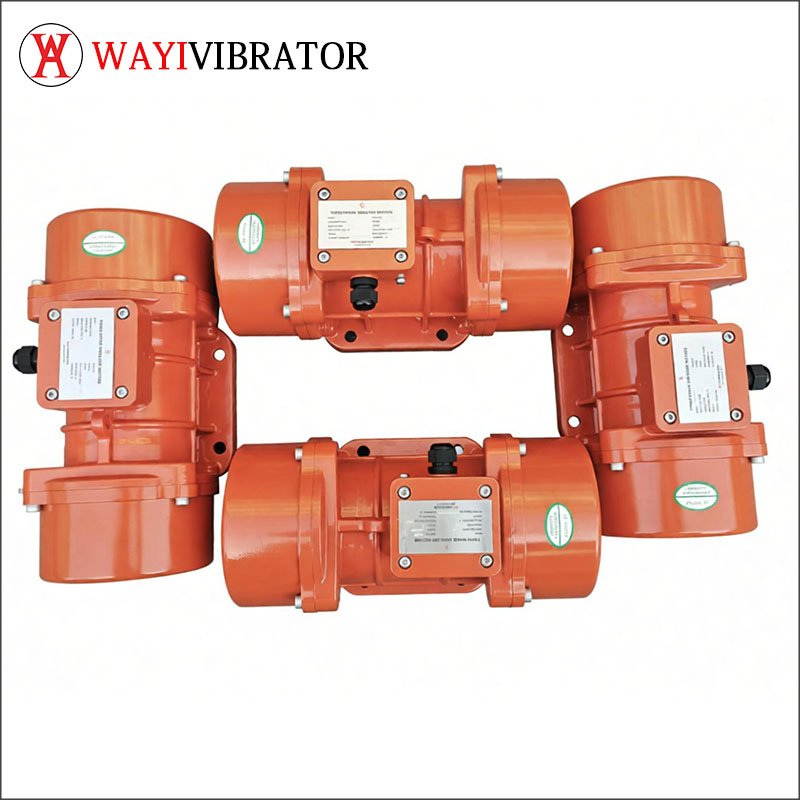

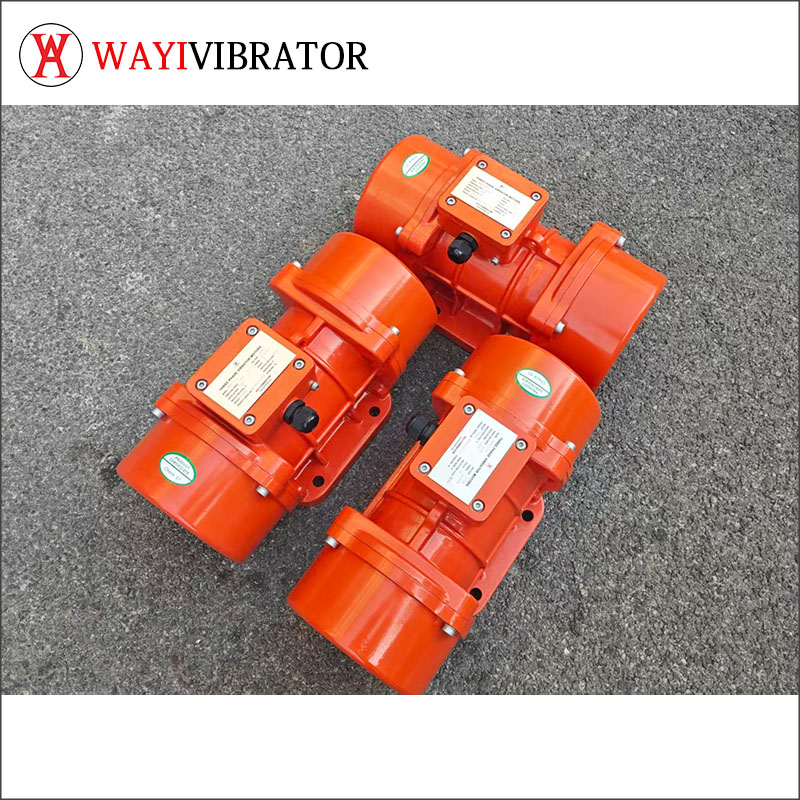

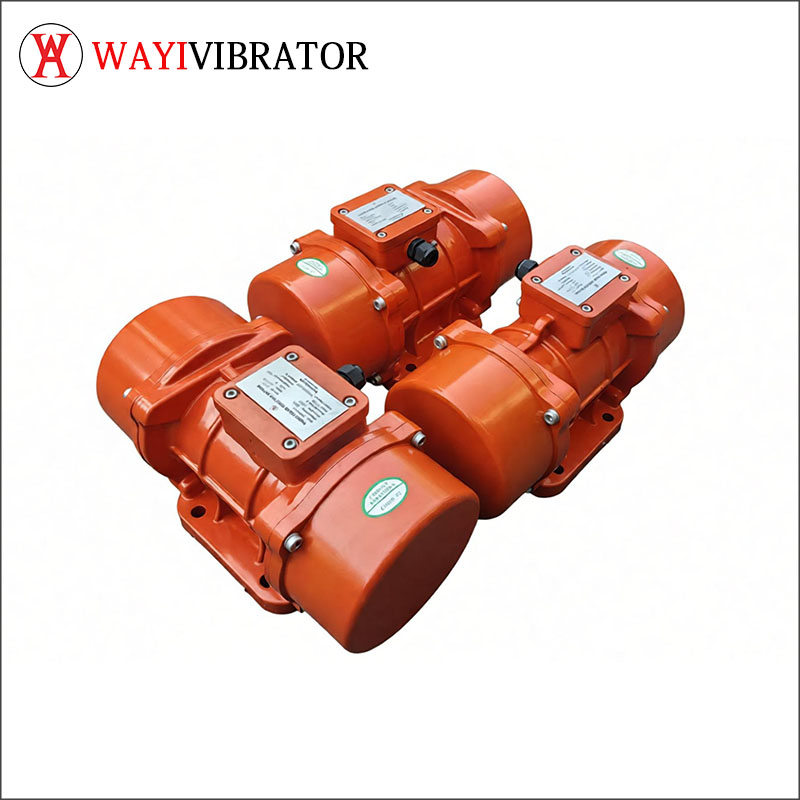

WMV 5 - 4 Vibrator Motor: High - Quality and Reliable Solution | MVE Vibrator Motor, WAYIVIBRATOR

• Centrifugal force: 5 kN @ 1 500 rpm
• Power rating: 0.25 kW (0.34 HP)
• Voltage: 220–240 V / 380–420 V Δ-Y, 50 Hz (60 Hz optional)
• Protection grade: IP65, aluminium alloy end-shields with FPM seals
• Insulation class: F (155 °C) optional H (180 °C)
• Ambient range: –20 °C … +40 °C (special grease for –40 °C on request)
• Bearings: C3 clearance, high-temperature lithium complex grease, 10 000 h L10 life
• Net weight: 21 kg

• Paint: 2-part epoxy, 240 µm, RAL 2000 (custom colours on request)

Advantages That Matter

1. Zero downtime design – sealed for life, no re-greasing intervals.
2. Adjustable force – 0–100 % stepless force via eccentric-weight scale; no disassembly needed.
3. Whisper-quiet – precision-machined rotors and dynamically balanced to G2.5; ≤ 72 dB(A) at 1 m.
4. Global voltage flexibility – wound for 50/60 Hz multi-voltage, eliminating separate SKUs.
5. Shock-resistant cable gland – nickel-plated brass, 180 °C rated, with 1 m silicone cable.

Typical Applications

• Vibrating feeders, conveyors, screens for quarries, foundries, recycling plants
• Bin & hopper discharge aids in cement, fertiliser, grain storage
• Packaging lines for tablets, capsules, frozen food
• Foundry shake-out tables and mould compaction equipment
