Three phase MVE 40/15 industry vibrator motor to replace OLI vibrator 0.3KN 0.04kw from Shanghai
Product Specifications:

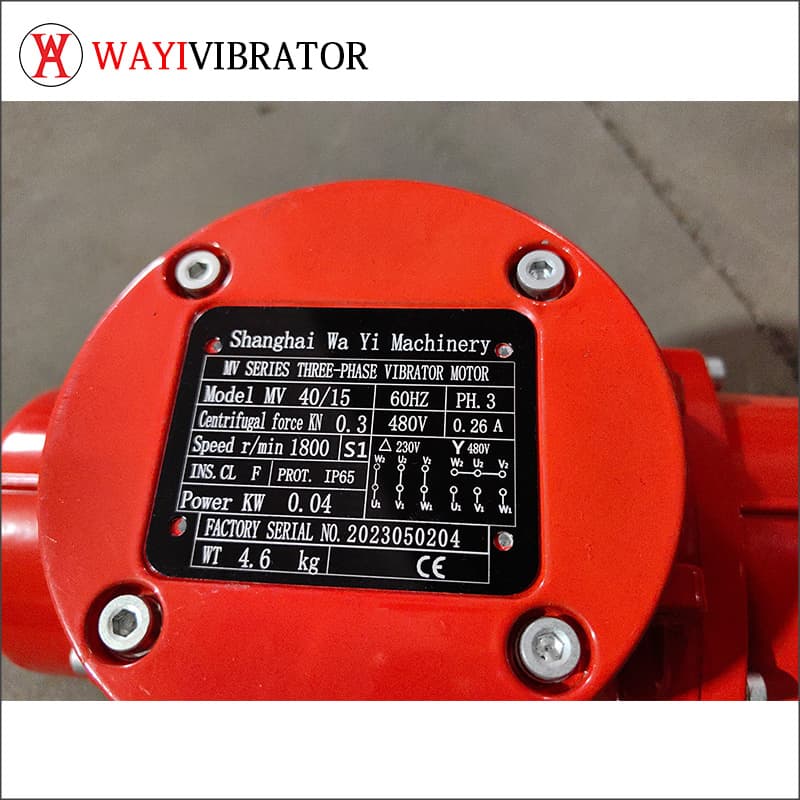

| Model: | MVE 40/15 | Poles: | 4 |
| Brand: | WA-YI | Speed: | 1500RPM |
| Power: | 0.04KW, 0.05hp | Color: | Orange/Red/Blue/Grey/Customized |
| Phase: | Three | Weight: | 4.6kg |
| Voltage: | 230V/480V,50/60HZ(customized) | Winding: | 100% Copper Wire |
| Ambient: | <40℃ | Package: | Strandard wooden case for sea |
| Altitude: | ≤1000meters | Standard: | CE,CCC |
| Warranty: | 18 Months | Efficiency: | IE2 |
| Dimensions: | 213*130*136(mm) | Vibration Force: | 0.3KN |
| Mounting Size: | (62-74)*106(mm) | Protect Feature: | Totally Enclosed |
| Place of Origin: | Shanghai, China | Frame Materials: | Cast aluminum alloy |
| Supply Capacity: | 1000 units/month | Protection Class: | IP54,IP55,IP56,IP65, |
| High-Temperature Resistance: | 120 Centigrade | lnsulation grade: | F |
WAYIVIBRATOR MVE 40/15 vibration motors can replace OLI vibrator motor, MVE 40/15 is a kind of high quality vibrator with aluminium alloy shell. MVE vibration motors are widely used in mining, metallurgy, coal, electric power, construction, chemical industry, casting, light industry, food and other industries with table vibration, excellent performance. Shanghai Wa Yi machinery can provide customized vibration motor to replace other brands. MVE 40/15 can offer vibration force of 0.3KN, they can be vibrating motor for vibrating table.
Features of MVE Series Vibrator Motors:
MVE 40/15 vibration motor mainly uses aluminum alloy shell, with slender shape, lighter weight and faster heat dissipation.
The exciting force range of MVE vibration motor is small, and the exciting force of most MVE vibration motors will not exceed 200kn
The cost of MVE vibration motor is much higher than that of YZO vibrator motors.
MVE vibration motor is more convenient to use and needs less maintenance.
History of MVE Series Vibrator Motors:
Italian company OLI is the inventor of MVE series vibration motor. Now OLI has subsidiaries in many countries to produce MVE series vibration motors. Other companies can also produce alternatives to MVE vibration motors.
Development of MVE Series Vibrator Motors:
For many years, most of the specifications of MVE vibrator motors do not change much, but the parts of the motor are better, so the quality of the motor is better. With the progress of technology, many manufacturers can purchase better parts. The improvement of the quality of vibration motor depends more and more on the improvement of the quality of various accessories, because the structural changes of vibration motor are few, and the structural design can not bring very obvious improvement.
Our MVE vibration motor reference oli parameter box standard, product quality is close to oli, the price is very competitive.
