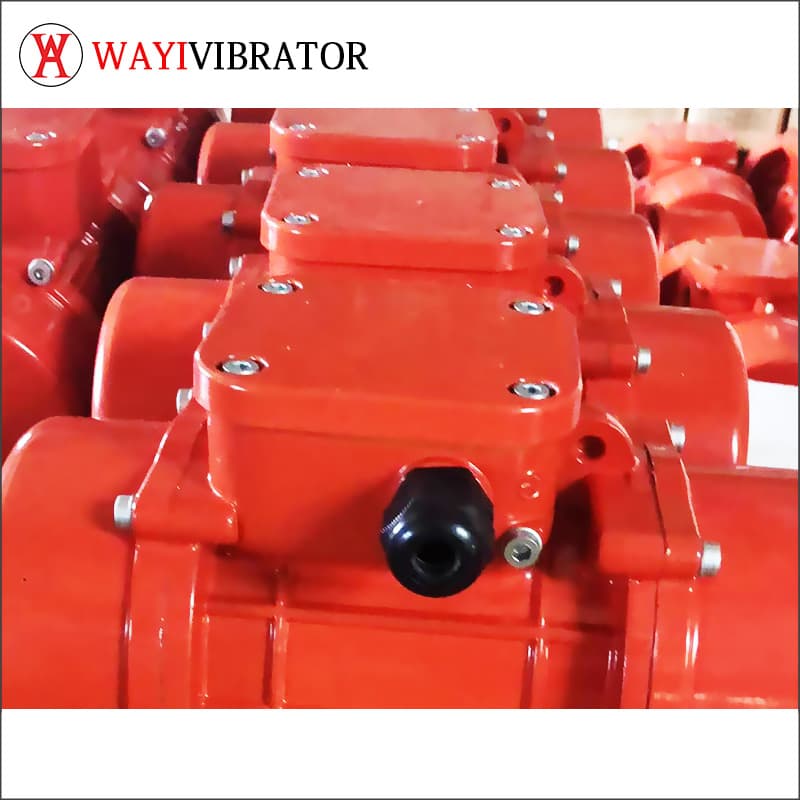

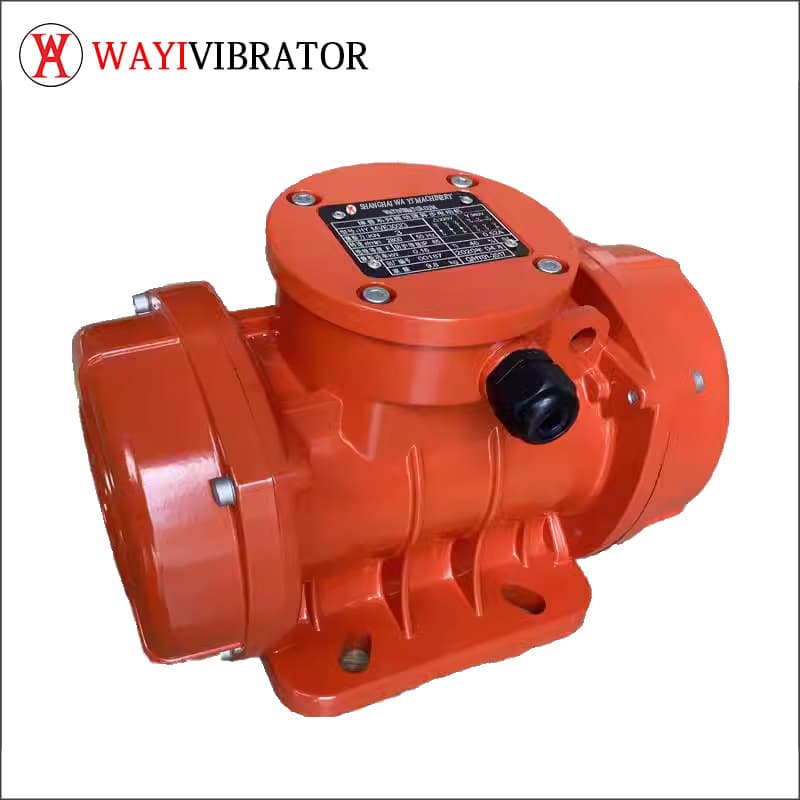

MVE 60/3 0.04kw,0.5hp, 0.7KN, 4.2kg good price good quality vibration motor from factory Shanghai

Basic Design and Construction

• The MVE 60/3 consists of an electric motor housed in a sturdy cast housin. This housing is designed in accordance with FMEA analysis, ensuring high reliability and durability.
• Eccentric weights are attached to both sides of the shaft, which generate centrifugal force when the motor is in operation.

Operational Principle

• When the motor is switched on, the rotation of the eccentric weights produces a sinusoidal centrifugal force. If only one MVE vibrator is mounted on a vibrating machine, it creates a rotational force, resulting in circular movement of the machine. However, when two MVE vibrator motors are mounted in parallel and rotate in opposite directions, they produce a linear force, leading to linear movement of the machine.The choice between circular and linear movement depends on the specific application requirements.

Applications

• Material Handling: Used in vibrating conveyors, screens, and feeders to improve material flow and prevent blockages.
• Vibrating Machines: It can drive various types of vibrating machines for purposes such as compacting, sizing, and screening.
• Hoppers and Silos: Installed on hoppers or silos to aid in material discharge and prevent bridging.

MVE series vibration motors originated from oli, Italy vibration motor factory. MVE vibration motors are widely used in mining, metallurgy, coal, electric power, construction, chemical industry, casting, light industry, food and other industries. Stable vibration, excellent MVE performance. Our company can provide MVE vibration motor to replace oli vibration motor.

Features of MVE Series Vibrator Motors:

1. MVE 60/3 vibration motor mainly uses aluminum alloy shell, with slender shape, lighter weight and faster heat dissipation.

2. The exciting force range of MVE vibration motor is small, and the exciting force of most MVE vibration motors will not exceed 200kn

3. The cost of MVE vibration motor is much higher than that of YZO vibrator motors.

4. MVE vibration motor is more convenient to use and needs less maintenance.

History of MVE Series Vibrator Motors:

Italian company OLI is the inventor of MVE series vibration motor. Now OLI has subsidiaries in many countries to produce MVE series vibration motors. Other companies can also produce alternatives to MVE vibration motors.

Development of MVE Series Vibrator Motors:

For many years, most of the specifications of MVE vibrator motors do not change much, but the parts of the motor are better, so the quality of the motor is better. With the progress of technology, many manufacturers can purchase better parts. The improvement of the quality of vibration motor depends more and more on the improvement of the quality of various accessories, because the structural changes of vibration motor are few, and the structural design can not bring very obvious improvement.

Our MVE vibration motor reference oli parameter box standard, product quality is close to oli, the price is very competitive.

Our Service:

Pre sales service:

1. Product consulting service.

2. Factory visit service.

Service in sale:

1. Product tracking service.

2. Product verification service.

3. Delivery and documentation services.

After-sale service:

1. Product use guidance.

2. 18 month warranty service.

3. Spare parts supply after warranty period.
