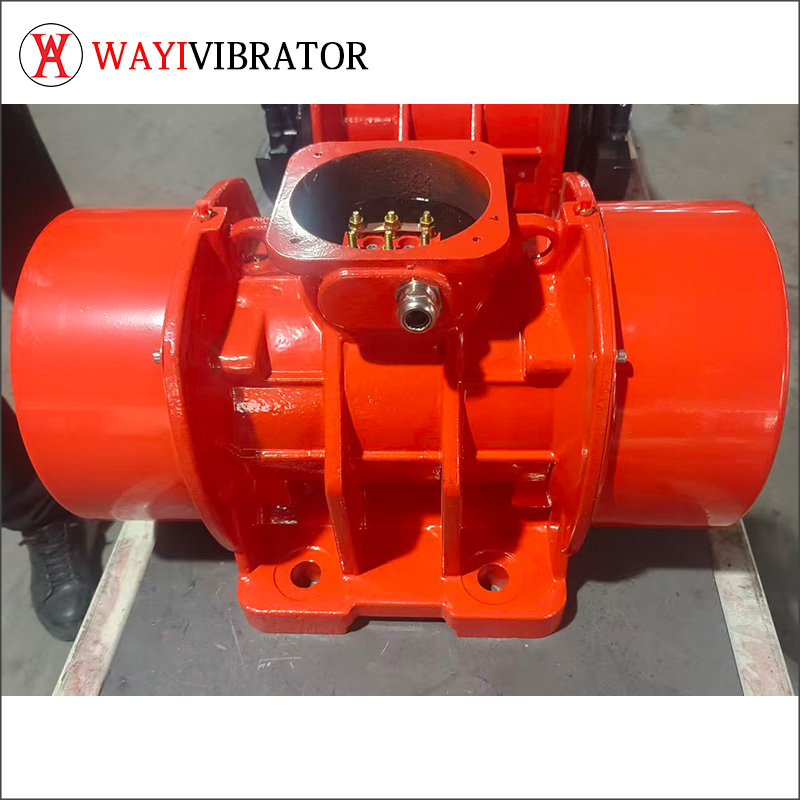

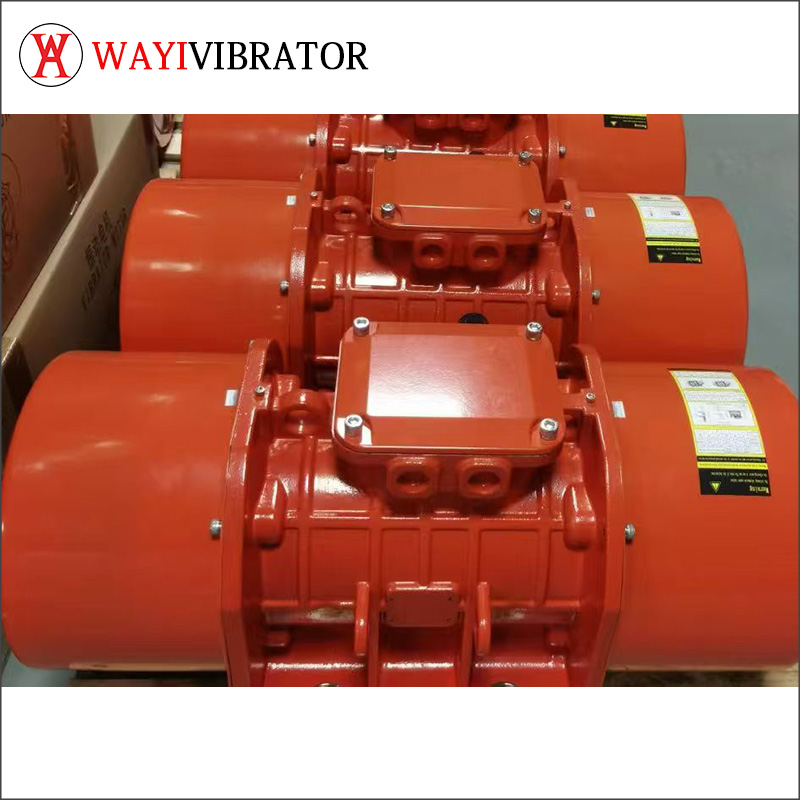

MVE 5000/3 vibrator motors from Chinese factory with good price to replace OLI
Product Specifications:
| Model: | MVE 5000/3 | Poles: | 2 |
| Brand: | WAYIVIBRATOR | Speed: | 3000RPM |
| Power: | 4KW, 5.3hp | Color: | Orange/Red/Blue/Grey/Customized |
| Phase: | Three | Weight: | 110kg |
| Voltage: | 220V/380V,50/60HZ(customized) | Winding: | 100% Copper Wire |
| Ambient: | <40℃ | Package: | Strandard wooden case for sea |
| Altitude: | ≤1000meters | Standard: | CE,CCC |
| Warranty: | 18 Months | Efficiency: | IE3 |
| Dimensions: | 564*304*325(mm) | Vibration Force: | 50KN |
| Mounting Size: | 155*255(mm) | Protect Feature: | Totally Enclosed |
| Place of Origin: | Shanghai, China | Frame Materials: | Cast aluminum alloy |
| Supply Capacity: | 1000 units/month | Protection Class: | IP54,IP55,IP56,IP65, |
| High-Temperature Resistance: | 120 Centigrade | lnsulation grade: | F |
The MVE 5000/3 is a high-performance electric vibrating motor from WAYIVIBRATOR’s MVE Standard Range. As a three‑phase, two‑pole unit, it features a rated speed of 3000 RPM at 50 Hz and operates at 230/400V.

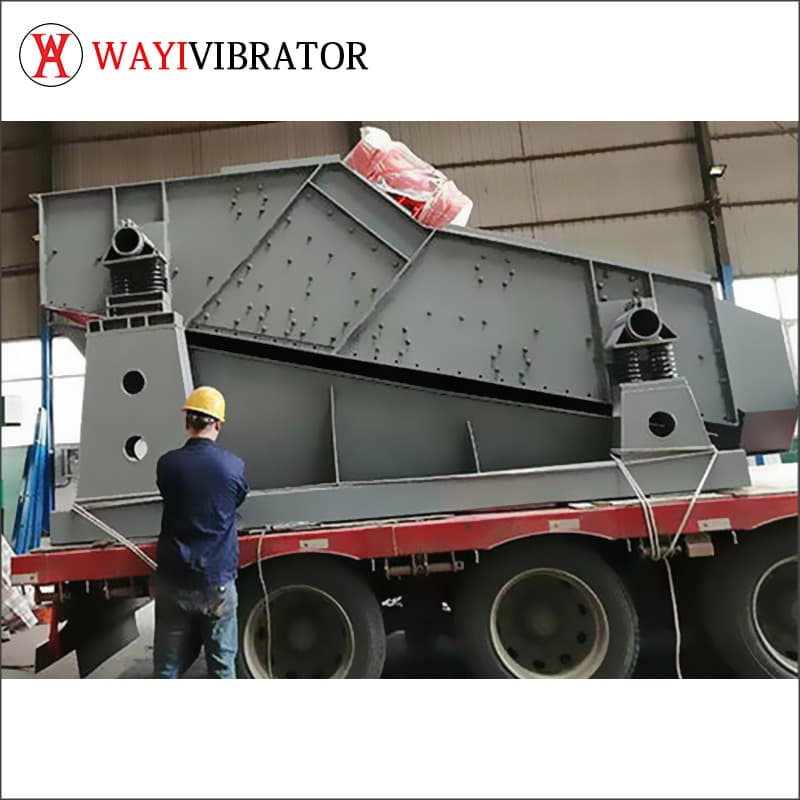

The MVE Standard Range is purpose‑engineered for a broad spectrum of industrial vibrating equipment, including vibrating screens, feeders, and vibrating tables. To accommodate diverse operating requirements, the series is offered in 2, 4, 6, and 8 poles configurations.
MVE series vibration motors by WAYIVIBRATOR serve numerous key industries, such as mining, metallurgy, coal, power generation, construction, chemicals, foundry, light industry, and food processing.
Renowned for stable vibration force and consistent, dependable performance, our MVE 5000/3 motor provides a direct, drop‑in replacement for original MVE vibrating motors, ensuring seamless compatibility and uninterrupted operation.
Features of MVE 5000/3 Vibrator Motors:
MVE 5000/3 vibration motor mainly uses aluminum alloy shell, with slender shape, lighter weight and faster heat dissipation.
The exciting force range of MVE 300/3 vibration motor is 0 KN to 50 KN.
The cost of MVE vibration motor is much higher than that of YZO,YZS,YZU vibrator motors.
MVE 5000/3 vibration motor is more convenient to use and needs less maintenance.
History of MVE Series Vibration Motors
The MVE series vibration motors were originally developed in compliance with European Union standards.
Today, MVE-type vibration motors are manufactured by producers across numerous countries, including a large number of suppliers based in China.
WAYIVIBRATOR specializes in the production of high-quality direct replacements for the MVE series vibration motors. Our products deliver consistent, reliable performance and maintain full compatibility with the original specifications.
Development of MVE Series Vibrator Motors:
For many years, the core specifications of our MVE series vibration motors have remained relatively stable. Nevertheless, continuous upgrades in component quality have delivered steady improvements in overall motor performance. Supported by advances in manufacturing processes, our suppliers are now able to procure higher-grade parts and raw materials.
Given that the structural design of vibration motors has seen minimal changes, further performance enhancements will increasingly depend on improved quality of components and accessories, rather than structural alterations.
Our MVE series vibration motors are produced in full compliance with EU standards. Their quality and performance are on par with leading European brands, while our pricing remains highly competitive in the global marketplace.
