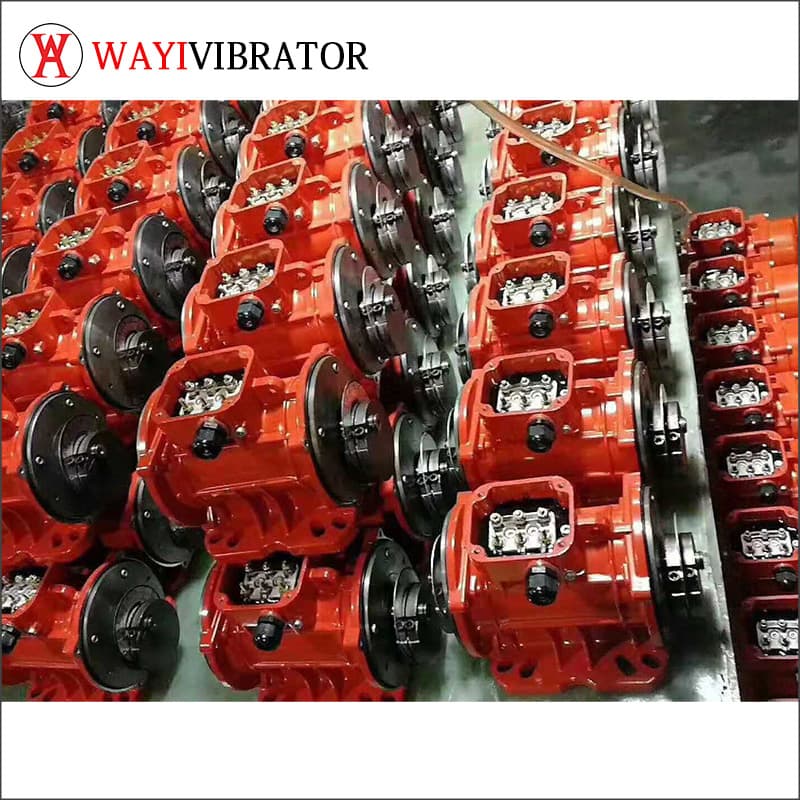

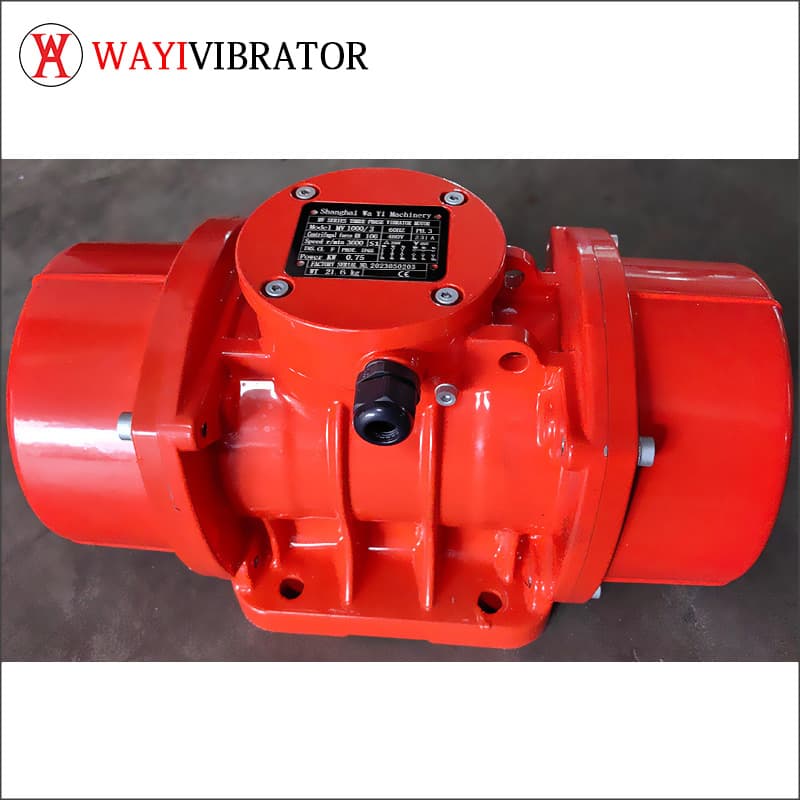

1 hp MVE 1000/3 vibrating motor price from manufacturer in China
MVE 1000/3 is a type of vibrating motor that is used in various industrial sectors on machines and vibrating tables. It is part of the MVE standard range of electric vibrating motor. The MVE Standard Range is suitable for use with inverters (variable frequency drive) and has a centrifugal force ranging from 20 to 30,000 kg, adjustable on each individual model.The mechanical features of MVE 1000/3 include a working moment of 1.96 kgcm, unbalance of 0.98 kgcm, and FC of 98 kg. WAYIVIBRATOR can offer you 1 hp MVE 1000/3 vibrating motor with good price from manufacturer in China.
Product Specifications:
| Model: | MVE 1000/3 | Poles: | 2 |
| Brand: | WAYI | Speed: | 3000/3600RPM |
| Power: | 0.75KW, 1hp | Color: | Orange/Red/Blue/Grey/Customized |
| Phase: | Three | Weight: | 21.6kg |
| Voltage: | 230V/480V,50/60HZ(customized) | Winding: | 100% Copper Wire |
| Ambient: | <40℃ | Package: | Strandard wooden case for sea |
| Altitude: | ≤1000meters | Standard: | CE,CCC |
| Warranty: | 18 Months | Efficiency: | IE2 |
| Dimensions: | 321*208*210(mm) | Vibration Force: | 10KN |
| Mounting Size: | 120*170(mm) | Protect Feature: | Totally Enclosed |
| Place of Origin: | Shanghai, China | Frame Materials: | Cast aluminum alloy |
| Supply Capacity: | 1000 units/month | Protection Class: | IP54,IP55,IP56,IP65, |
| High-Temperature Resistance: | 120 Centigrade | lnsulation grade: | F |
MVE series vibration motors originated from oli, Italy vibration motor factory. MVE vibration motors are widely used in mining, metallurgy, coal, electric power, construction, chemical industry, casting, light industry, food and other industries. Stable vibration, excellent MVE performance. Our company can provide MVE vibration motor to replace oli vibration motor.
Features of MVE Series Vibrator Motors:
MVE 1000/3 vibration motor mainly uses aluminum alloy shell, with slender shape, lighter weight and faster heat dissipation.
The exciting force range of MVE vibration motor is small, and the exciting force of most MVE vibration motors will not exceed 300kn
The cost of MVE vibration motor is much higher than that of YZO vibrator motors.
MVE vibration motor is more convenient to use and needs less maintenance.
History of MVE Series Vibrator Motors:
Italian company OLI is the inventor of MVE series vibration motor. Now OLI has subsidiaries in many countries to produce MVE series vibration motors. Other companies can also produce alternatives to MVE vibration motors.
Development of MVE Series Vibrator Motors:
For many years, most of the specifications of MVE vibrator motors do not change much, but the parts of the motor are better, so the quality of the motor is better. With the progress of technology, many manufacturers can purchase better parts. The improvement of the quality of vibration motor depends more and more on the improvement of the quality of various accessories, because the structural changes of vibration motor are few, and the structural design can not bring very obvious improvement.
Our MVE vibration motor reference oli parameter box standard, product quality is close to oli, the price is very competitive.
