Self-Fan-Cooled Vibrating Motor: Compact Size, High Excitation Force, Long-Lasting Reliability

Self-Fan-Cooled Vibrating Motor: Compact Size, High Excitation Force, Long-Lasting Reliability

Breaking Tradition, Ushering in a New Era of Vibrating Motors

In the field of vibrating machinery, poor heat dissipation, insufficient rigidity, and low reliability during continuous operation have long been challenges. Traditional vibrating motors, derived from standard industrial motors, rely solely on passive cooling through housing fins, resulting in low excitation force, high temperature rise, and short service life.

The Self-Fan-Cooled Vibrating Motor fundamentally changes the game – it is smaller, lighter, stronger, and cooler.

Four Core Technological Breakthroughs Defining High-Performance Vibrating Motors

1. Self-Fan-Cooling + Coanda Effect: Active Heat Dissipation, Dramatically Lower Temperature Rise

Annular air guide channels are arranged around both ends of the stator housing. The eccentric weight integrates axial flow fan blades (available in twisted surface, spiral ridge, or spiral groove configurations) and, together with the guard, forms a high-efficiency fan.

During operation, airflow travels along the outer surface of the motor housing, fully removing heat via the Coanda effect, achieving far higher cooling efficiency than traditional fin cooling.

Test data: A 1.1 kW prototype under the same excitation force saw operating current drop by nearly half, and temperature rise significantly reduced, enabling long-term continuous operation.

2. Patented Base Foot Design: Doubled Rigidity, Stable Installation

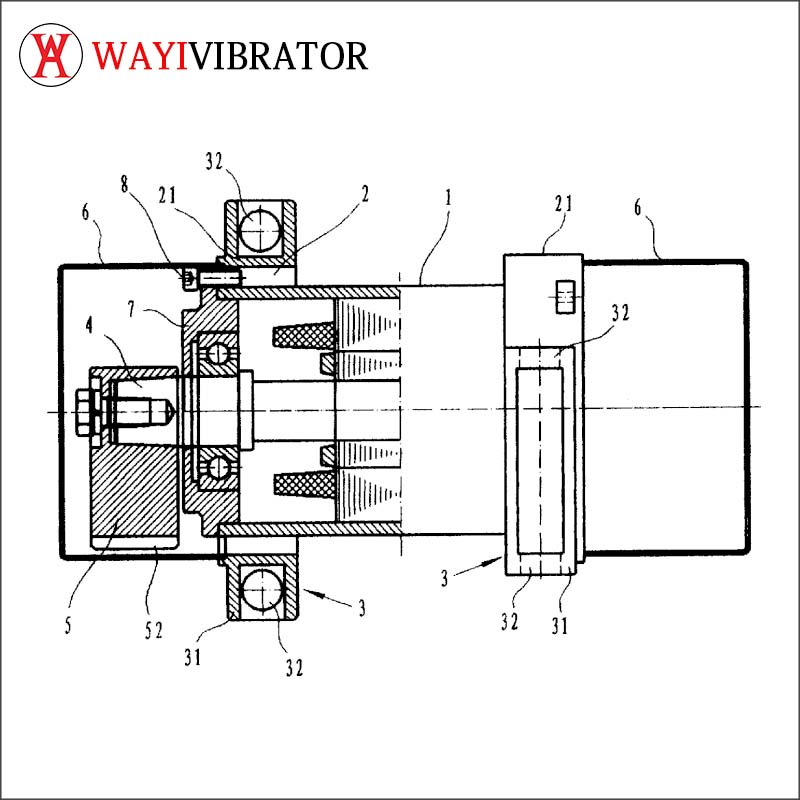

The cross-section of the base foot along the centerline of the mounting holes is a rectangular frame structure, fixed at one end to the outer wall of the air guide channel and open at the other.

The upper edge of the frame is not lower than the motor centerline, greatly enhancing the structural strength of the base foot and overall motor rigidity, while also providing ample wrench clearance for bolt installation.

Compared to traditional end-cap connections, shock and vibration resistance is outstanding – under severe abusive conditions, other motors failed while this one remained undamaged.

3. Multi-Function Eccentric Weight: Two in One, Lightweight & Efficient

The eccentric weight not only generates excitation force but also doubles as a fan impeller, eliminating the need for separate cooling components.

Multiple blade profiles are available: twisted surface, spiral ridges, or spiral grooves. Balancing holes allow flexible adjustment of mass and center of gravity to meet various excitation force requirements.

A tapered shaft connection ensures that the centers of gravity of the two eccentric weights on the double shaft extension lie in the same plane for smooth operation.

4. Compact & Lightweight Construction: Half the Weight for the Same Excitation Force

Thanks to a highly integrated design, the motor delivers the same excitation force while significantly reducing volume and weight, making installation, transport, and maintenance easier.

It is especially suitable for space-constrained applications or where equipment deadweight must be minimized.

Typical Applications

• Vibrating screens, feeders, conveyors

• Mining, metallurgy, foundries, building materials, chemical industries

• Automated production lines requiring long continuous operation

• Harsh environments demanding high reliability and heat dissipation

Conclusion

The Self-Fan-Cooled Vibrating Motor, with its innovative structural design, superior heat dissipation performance, and rock-solid rigidity, provides a “cool yet powerful heart” for vibrating machinery. If you are looking for a long-life, low-energy, high-excitation-force vibrating motor, this is your ultimate choice.

Every vibration, precise and powerful. Every degree of heat, calmly and efficiently managed.
