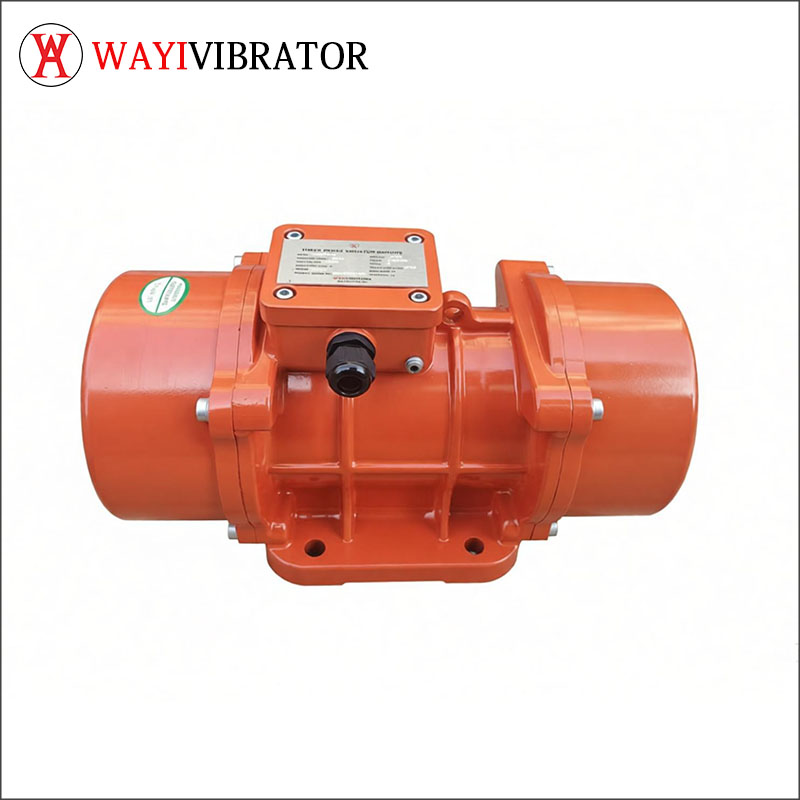

The case of WMV 5-4 vibrator motors for Africa customer to replace MVE 500/15 from WAYIVIBRATOR

• Precise alignment of installation dimensions: The two motor models share identical overall dimensions, consistent mounting hole layout (120mm center-to-center spacing), and uniform shaft diameter. This eliminates the need for any adjustments to the vibrating screen’s motor base or fixing brackets, significantly streamlining the replacement process.

• Matching of core performance parameters: The WMV 5-4 retains the same rated power (0.25 kW) and centrifugal force (5,000 N) as the MVE 500/15, ensuring the material processing efficiency remains stable at 150 tons per hour without compromising the client’s production capacity.

• Comprehensive interface compatibility: The arrangement of the motor’s terminal blocks, cable entry position, and protection class interface are fully consistent with the original MVE 500/15. This allows direct connection to the existing control system without the need for additional wiring adjustments or modifications.
During the on-site commissioning phase, the replacement of all 8 motors was completed in just 4 hours with zero equipment downtime — a result that fully validated the seamless compatibility of the WMV 5-4 with the client’s existing setup.

Core Advantage 2: Industrial-Grade Durability Tailored for Africa’s Harsh Environments：For the Ghanaian client, reliable performance under extreme conditions was an indispensable hard requirement. The WMV 5-4 has achieved quality upgrades through targeted design optimizations and rigorous testing processes:

• Superior environmental protection capability: Upgraded from IP55 to IP66 protection class, the motor is equipped with double-layer O-rings and precision-machined housing joints. These features effectively block dust infiltration (PM2.5 concentrations in mining areas often exceed 500 μg/m³) and prevent moisture damage to the equipment during the rainy season.

• Robust core components: Adopting C4 clearance heavy-duty roller bearings (replacing standard ball bearings) paired with H-class insulated windings capable of withstanding temperatures up to 180°C, the motor can operate continuously in ambient temperatures as high as 45°C, directly addressing the challenge of extreme heat in African mining regions.

• Stringent quality control: Prior to delivery, each WMV 5-4 motor undergoes a 100-hour continuous load test, vibration impact test (withstanding up to 5G acceleration), and voltage fluctuation resistance test (adapting to ±15% voltage variations). It fully complies with ISO 9001 and IECEx standards, ensuring industrial-grade reliable quality.
After 8 months of actual operation, the WMV 5-4 motors achieved a zero-failure record — maintaining stable operation even during severe dust storms and drastic power grid fluctuations. This performance far surpasses that of the MVE 500/15, which had an average failure interval of only 3 months.

Core Advantage 3: Highly Competitive Pricing Reduces Overall Operational Costs: Cost-effectiveness was a key factor in the client’s decision-making. Faced with budget pressures from rising costs of original equipment, the WMV 5-4 has achieved significant cost savings through optimized supply chain management and improved production efficiency. By streamlining manufacturing processes and leveraging regional supply networks, the motor provides a more economical solution without sacrificing performance. This not only reduces upfront procurement costs but also lowers long-term operational expenses, effectively alleviating the client’s budgetary pressures while meeting the high standards required for mining operations.
